LED Clock accessories

Call or send email for more information and pricing.
Distributors and OEM orders welcome. We make clocks and displays to your specifications.

KERA Technologies Inc.

Jumbo LED Digital Clocks with REMOTE CONTROL

SELENA

Accessories for SELENA Clocks and Timers

OTHER PRODUCTS:
DIGITAL THERMOSTATS and TIMERS for SAUNA, SPA, POOLS and STEAM BATH (with remote probes)
DIGITAL THERMOSTATS (with remote probes)
HOME THERMOSTATS for HVAC and WATER HEATER with remote probes
TALKING THERMOSTATS for Visually Impaired and for convenience
DIGITAL DIFFERENTIAL THERMOSTATS for SOLAR HEATING and VENTILATION (with remote probes)
DIGITAL TIMERS for all uses including Motor/Pump cycling for Aquarium, Stoves, Heaters etc...

E-mail: sales@ledclocks.com

GO TO
INDEX

ORDERING
INSTRUCTIONS

List Of
Options

APPLICATIONS

HOSPITAL
SCHOOL
AIRPORT
MILITARY BASE
MARINE VESSELS
SHIPS, BOATS
SUBMARINES
BANK
STADIUM
GYM
CHURCH
SUBWAY STN.
BUS STN.
RAILWAY STN.

LED Clocks
and Timers

INDEX

E-mail: sales@ledclocks.com

Sirens and Buzzers for programmable timers and counters

Toll Free: 1-866-829-4253

115 dB sound, 20 Watts power
5" x 8" ABS plastic
6-15VDC supply
May be powered externally
or directly from the clock
if option # 729PS installed

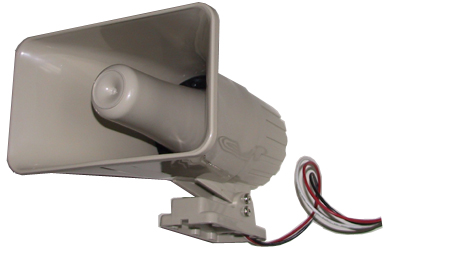

Option # 729HP
High Power External 8 inch
All-Weather Horn / Buzzer / Siren

Option # 729MP
Medium Power External 4 inch
All-Weather Horn / Buzzer / Siren

Option # 729PZ
Medium Power External 2 inch
Piezo Horn / Buzzer / Siren

110 dB sound, 10 Watts power
4" Dia. ABS plastic
6-15VDC supply
May be powered externally
or directly from the clock
if option # 729PS installed

105 dB sound, 3 Watts power
2" Dia. ABS plastic
6-15VDC supply
May be powered externally
or directly from the clock
if option # 729PS installed

Option # 729LPW
Low Power Piezo
Alarm Buzzer

Option # 729LPX
Low Power Piezo
Alarm Buzzer

110 dB sound, 0.5 Watt power
1.5" Dia. ABS plastic
6-24VDC supply
Powered directly from the clock.

110 dB sound, 0.5 Watt power
1.5" Dia. ABS plastic
6-24VDC supply
Powered directly from the clock

Temperature Probes and Sensors ( for options # 711, 712, 713, 714B and 714C )

The internal buzzer is not very loud and for applications where a loud Horn or Siren is needed,
an external Horn / Buzzer may be installed. It can be controlled by the clock internal relay ( option # 727 ) that is operated automatically by the programmable timers, counters or temperature alarms.

All SELENA clocks include Internal Piezo Buzzers for Alarms
initiated by the clock timers, counters or temperature monitors..

The temperature monitoring, programmable thermostat and control options require an internal or external temperature sensor probe. The standard sensor normally included with the selected option may not be the most suitable model for each application and therefore a specific probe model may be ordered.
The selection below shows some of the available models and mounting accessories.
NOTE, that the probe wiring may be extended up to 500 ft ( 150 m ) with any type of a 2-conductor cable.

NA7100KB4100BLK

NA7100KB4100CHR

NA7100KB4100RDT

NA7100KB4100SQT

NA7100KB4100DPD

NA7100KB4100SHD

PT1000TC38550MM

NA7100KB4100PIPTR

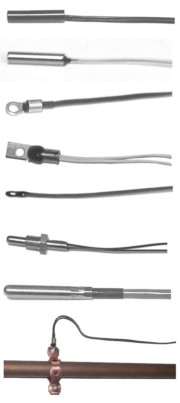

SELECTION of standard Temperature Probes :

OPTIONAL Plastic or Metal (SS)
Sensor Probe Plate
(model PPP4 or PPS4 ).

OPTIONAL:
Sensor Probe Guard
model PG5 (black or grey ) .

Thermowell model:
SSTW-114-066-050NPT

Stainless Steel
Stem = 4-1/2"
Bore = 0.26"
1/2 NPT thread

Thermowell model:
SSTW-114-066-075NPT

Stainless Steel
Stem = 4-1/2"
Bore = 0.26"
3/4 NPT thread

Thermowell model:
SSTW-41-066-050NPT

Stainless Steel
Stem = 1-5/8"
Bore = 0.26"
1/2 NPT thread

Thermowell model:
SSTW-64-066-050NPT

Stainless Steel
Stem = 2-1/2"
Bore = 0.26"
1/2 NPT thread

Thermowell model: BTW-100-05-075NPT
Brass, Stem = 4" , Bore = 0.2", 3/4 NPT thread

Thermowell model: BTW-25-05-075NPT
Brass, Stem = 1" , Bore = 0.2", 3/4 NPT thread

Thermowell model: BTW-25-05-025NPT
Brass, Stem = 1" , Bore = 0.2", 1/4 NPT thread

Click HERE to download PDF file

Protective Guards / Covers for clocks ( option series # 745 type A and B )

Click HERE to download PDF file

In some installations like Gym, Bus Station, Swimming Pools etc..., the clock may have to be protected against accidental damage by a flying object or debris. The protective covers made out of Acrylic or Lexan are highly impact resistant and fully transparent.

SPECIFICATIONS:

Material: TRANSPARENT ACRYLIC or LEXAN
Wall Thickness:   3/16" (4.75 mm )

Model # 745ACA4 and # 745LXA4
Dimensions for 4 inch, 4 and 6 digits models:
Overall:   20" x 11" x 5"   (50.8 cm x 28 cm x 12.7 cm)

Model # 745ACA7 and # 745LXA7
Dimensions for 7 inch, 4 and 6 digits models:
Overall:   36-3/8" x 16-3/8" x 5"   (92.4 cm x 41.6 cm x 12.7 cm)

Model # 745ACA7L and # 745LXA7L
Dimensions for 7 inch, 6 and 8 digits, and special models:
Overall:   52-3/8" x 16-3/8" x 5"   (133 cm x 41.6 cm x 12.7 cm)

Model # 745ACB74 and # 745LXB74
Dimensions for 7 inch, 4 digits models:
Overall:   25-3/8" x 11-1/8" x 4-3/4"   (64.5 cm x 29 cm x 12 cm)

Model # 745ACB76 and # 74LXB76
Dimensions for 7 inch, 6 digits models:
Overall:   36-3/4" x 11-1/8" x 4-3/4"   (93.3 cm x 29 cm x 12 cm)

Click HERE to download Installation Instructions

RS232 to RS485 serial CONVERTER module ( option # 901 )

This converter may be used to provide RS485 serial communication where only RS232 or USB port is available.
One side plugs into RS232 serial port or extension cable and the RS485 wires may be connected to the terminal block on the other side.
RS485 communication allows for sending reliably fast data over long distance using just a simple pair of wires ( 2-conductor cable ) that does not have to be shielded.

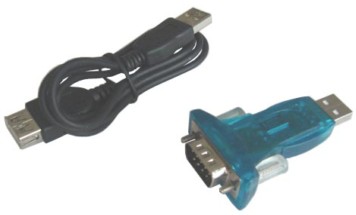

USB to RS232 serial CONVERTER module ( option # 903 )

This converter may be used to connect a USB port in computers to an RS232 serial device.

One side plugs into the USB serial port or extension cable and the RS232 side 9 pin connector may be connected to the device or an extension cable

Option # 729HPCO
High Power Compact External 4 x 4 inch
All-Weather Horn / Buzzer / Siren

118 dB sound,15 Watts power
4" x 4" x 4" ABS plastic
6-15VDC supply
May be powered externally
or directly from the clock
if option # 729PS installed

The battery can be fully recharged by connecting the automatic battery charger that can be plugged directly into the power line outlet.

Battery Backup Supply BK12V7H2A and Automatic Charger BCH1205

For 2.3 inch displays:
For 4 inch, 4 digits displays:
For 4 inch, 6 digits displays:
For 7 inch, 4 digits displays:
For 7 inch, 6 digits displays:

Model BK12V7H2A battery and model BCH1205 charger

For LED clock / timer models for 12VDC supply, an external 12V battery is necessary.
It allows the display to run for several hours per charge and it requires a battery charger.

For use where the power line is not available

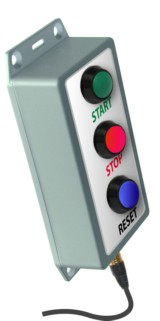

TIMER / COUNTER remote Push-Button Box
( Model series # PBMXYZ(C) in metal and # PBPXYZ(C) in plastic )

For use with option # 738, external Start/Stop/Reset terminals for timers and counters

NOTES:
-   Other box sizes available upon request.
-   Vandal-proof, water-tight pushbuttons in various colors with standard or custom legend labels.
-   Available with or without connector.
    Available without or with cable at custom lengths..

X = Number of Push-buttons:

0 = no push-buttons
1, 2, 3 = 1, 2 or 3 push-buttons

Y = Box Size:

Aluminum:
1 = 4.39" x 2.34" x 1.06 " ( 112mm x 60mm x 27mm ) ( for 1 to 3 pushbuttons )
2 = 3.64" x 1.52" x 1.06 " ( 93mm x 39mm x 27mm ) ( for 1 to 2 pushbuttons )
ABS Plastic:
1 = 4.4" x 2.5" x 1.1 " ( 113mm x 63mm x 28mm ) ( for 1 to 3 pushbuttons )
2 = 3.3" x 2.2" x 0.8 " ( 85mm x 56mm x 21mm ) ( for 1 to 2 pushbuttons )

G = Grey
B = Black

Z = Box Color:

NOTE: Custom colors and sizes available.

Thermowells for Temperature Probes and Sensors

C = Connector:

Box with Cable Connector

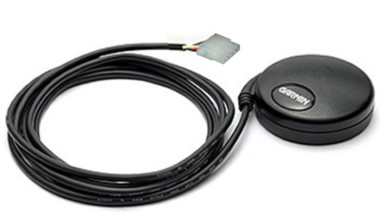

GPS Receiver with Internal Antenna
Model for stationary installations
( option # 725GPS )

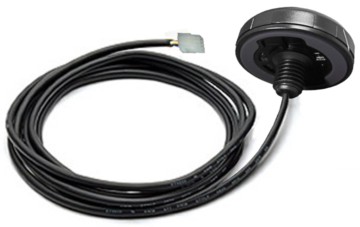

GPS Receiver with Internal Antenna
Model for mobile installations
( option # 725GPSV )

-   High sensitivity
-   Waterproof housing with strong magnet base
-   Additional screw mount in the base
-   Diameter: 2.4" ( 61 mm )
-   Height: 0.76" ( 19.5 mm )
-   15 feet ( 4.5 meters ) cable
-   Operating Temp.-22F to +175F ( -30C to +80C )

-   High sensitivity
-   Waterproof housing with mounting shaft
-   Mounting hardware included
-   Diameter: 2.44" ( 62 mm )
-   Height: 0.82" ( 21 mm )
-   15 feet ( 4.5 meters ) cable
-   Operating Temp.-40F to +185F ( -40C to +85C )

The display operating times at low to medium brightness:

up to 14 hours
up to 14 hours
up to 12 hours
up to 7 hours
up to 6 hours

The actual model may not be exactly as shown.

Toll Free: 1-866-829-4253

TIMER / COUNTER remote Push-Button Plates
Model series # SPB-X in steel and # PPB-X in plastic ( X = number of push-buttons )

For use with option # 738, external Start/Stop/Reset terminals for timers and counters

NOTES:
-   1, 2 or 3 push-buttons available.
-   Vandal-proof, water-tight pushbuttons in various colors with standard or custom legend labels.
-   Plate Dim's: 4.75" x 2.75" x 0.2" ( 121mm x 67mm x 5mm ) Fits over standard 1-gang wiring box.

SPB-3

SPB-2

PPB-3

PPB-2

Model PBM31GC shown

Click HERE to download PDF file

EXTERNAL Power Line Carrier Modem
Option # 902 and # 902PH3

The power line modem (PLC Modem) is a dedicated device for transferring data over the power line wiring.
The PLC Modem uses the power line wiring as the communication medium.
It eliminates the need to lay additional cables for communication.

Option # 902:
Option # 902PH3:

1-phase, external PLC modem
3-phase, external PLC modem

Power line voltage :
Ambient temperature :
Relative humidity :
Carrier frequency :
Data input :
Data Baud rate :

85---250VAC, 50/60 Hz.
-18F ~ +122F ( -10C ~ +50C )
95%, non-condensing
115 kHz or 82 to 88 kHz
RS232, 9 pin D-shell
300, 600 or 1,200 bps

Click HERE to download PDF file

EXTERNAL ALARM LIGHTS

Click HERE to download PDF file
